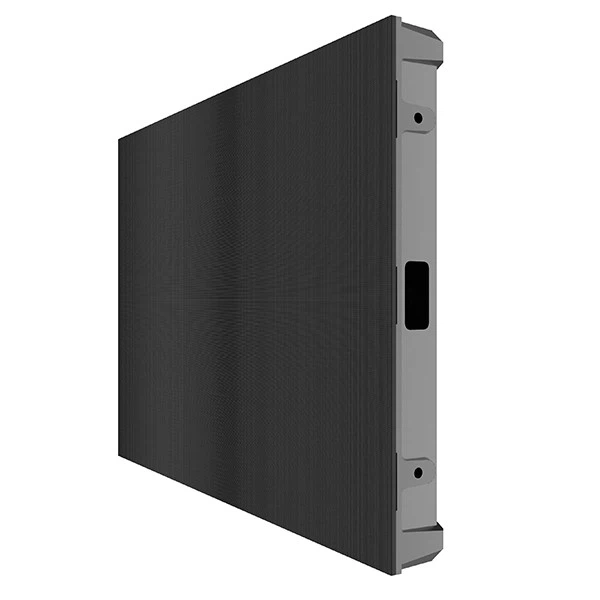

M640 P1.86 Fine Pixel Pitch LED Displays

M640 series 640*480mm indoor fine pixel pitch LED displays, LED video walls.
Send Inquiry

Description

Technical Parameters

Shenzhen Matrix Displays Co., Ltd. is one of the leading manufacturers and suppliers of m640 p1.86 fine pixel pitch led displays in China. We have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy durable m640 p1.86 fine pixel pitch led displays at competitive price from our factory.



11

Pitch 1.86mm fine pixel pitch Indoor LED displays.


Product Features

  • Module size:320x160mm, Cabinet size:640*480mm. compatible pitch: 1.86/2/2.5.

  • Cabinet horizontally and vertically seamless splicing, effectively reduce the interference of

visual gap, complete and coherent display performanceGreat display performance even at a short distance viewing

  • 16-channel Constant Current Driving IC, better gray scale level a

  • High refresh rate. Nature gray scale shifting, reduce shooting stripes effectively


4

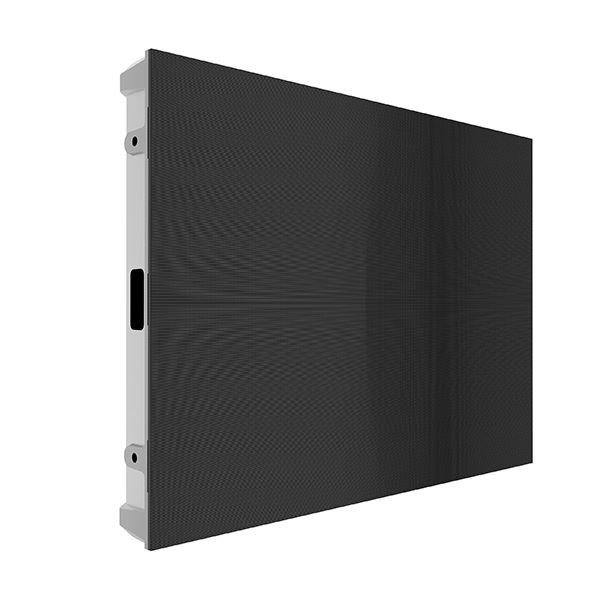

M640 is slim designed, 74mm thickness, and it weighs 6.8kg/panel only.

size



Wide viewing angle, up to 160/160 degrees, and excellent contrast.





Parameter

Model

M640

Pixel Pitch

1.86 mm

LED Type

1515 SMD

Module Size

320*160 mm

Pixel Density

289050 pixel/㎡

Refresh Rate

3840Hz

Gray Scale

16 Bit

Brightness

600-1000 cd/㎡

Scan Way

1/43

Frame Rate

50HZ~60HZ

Viewing Angle

H:140°, V:140°

Cabinet Resolution

344*258 Dots

Material

Die-casting Aluminum

Cabinet Size

640*320*74mm

Cabinet Weight

6.8Kg

IP Rating

Indoor use only

Pitch 1.86mm will is highly recommended for indoor high high resolution screen.
