P1.9 LED Displays

P1.9 LED Displays

Name: China P1.9 LED Displays Suppliers and Manufacturers - Factory Direct Price - MATRIX
Brand: Matrix Displays
SKU: 44724392

Advantages 1.Made by 1515 3 in 1 full color black face and body SMD, ultra-high contrast, and grey scale level 2.Heat dissipation is by means of aluminum body, thus no fans, producing no noise The P1.9 LED display body, are made by die-casting aluminum, robust, and also with high precision;...

Send Inquiry

Description

Technical Parameters

UHD PH1.9

● Pixel pitch: 1.935 mm

● Pixel configuration: 3 in 1 1515 black SMD

● Refresh: 3840 Hz

● Panel dimension: 480×540 mm

2:3 ratio, easy to achieve 16:9 format

Advantages

1.Made by 1515 3 in 1 full color black face and body SMD, ultra-high contrast, and grey scale level


2.Heat dissipation is by means of aluminum body, thus no fans, producing no noise

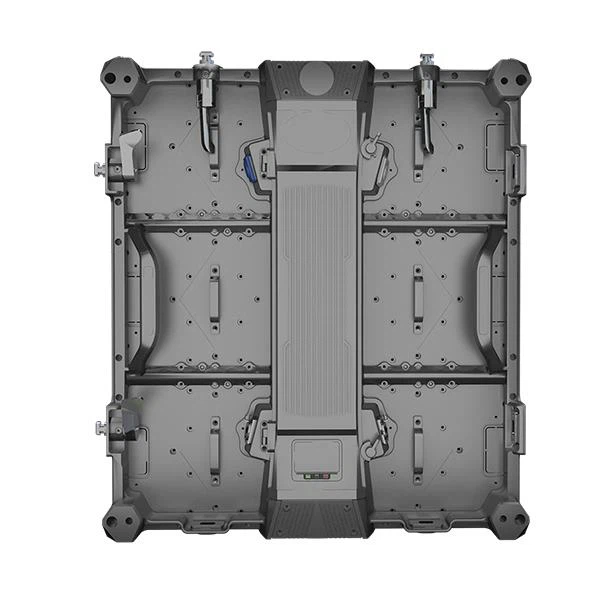

The P1.9 LED display body, are made by die-casting aluminum, robust, and also with high precision; seamless mapping for big display mapping.


3.In low brightness performance, P1.9 LED displays still achieves an excellent gray level, and when playing scan lines, not ghost pixels.


4.3840HZ refresh rate, in front of professional live camera, no flickers, black lines.

Matrix Displays are in close cooperation with Macroblock, Texas Instruments.


Parameter
Model	UHD-18	UHD-20	UHD-25	UHD-30
Pixel Pitch	1.875 mm	2.0mm	2.5 mm	3.0mm
LED Type	1515 SMD	1515 SMD	1515 SMD	1515 SMD
Module Size	240*180 mm	240*180 mm	240*180 mm	240*180 mm
Pixel Density	284444 pixel/㎡	250000 pixel/㎡	160000 pixel/㎡	111111 pixel/㎡
Refresh Rate	3840Hz	3840Hz	3840Hz	1920Hz
Gray Scale	16 Bit	16 Bit	16 Bit	16 Bit
Brightness	600-1000 cd/㎡	600-1000 cd/㎡	600-1000 cd/㎡	600-1000 cd/㎡
Scan Way	1/32	1/30	1/24	1/30
Frame Rate	50HZ~60HZ	50HZ~60HZ	50HZ~60HZ	50HZ~60HZ
Viewing Angle	H:140°, V:140°	H:140°, V:140°	H:140°, V:140°	H:140°, V:140°
Cabinet Resolution	256*288 Dots	240*270 Dots	192*216 Dots	160*180 Dots
Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Size	48054085mm	48054085mm	48054085mm	48054085mm
Cabinet Weight	8.6Kg	8.6Kg	8.6Kg	8.6Kg
IP Rating	Indoor use only	Indoor use only	Indoor use only	Indoor use only
