Ideal solution for Concert LED Sreen

Available pixel pitch:
Indoor, P1.9mm / 2.6mm / 3.1mm / 3.9mm
Outdoor, P2.6mm / 3.1mm / 3.9mm / 4.8mm

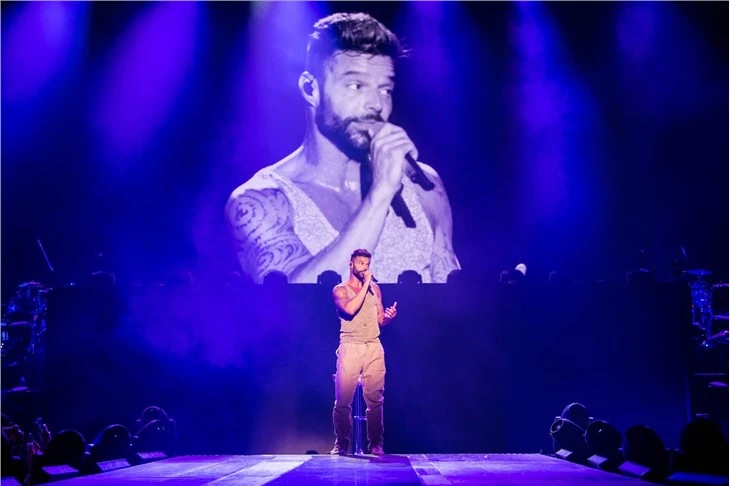

Concert LED Screen
Smart Modular Design
Installation and maintenance is so easy beyond your expectation, due to the advanced and improved modular system; it does not require any trainning program or knowledge to learn how to do so.

Creative installation
Supports both convex and concave installation, and 90 degrees straight corners

Advanced design
Our concert LED screens give every single audience a front-row vivid visual experience. We provide you an LED Screen that’s perfect for your unique demands. Our experienced and devoted team will assist you increase audiovisual entertainment and engagement at your forthcoming concert with ease!

1st class visual Service on stage
Together with our professional sales and R&D team, you will enjoy a wonderful experience of purchasing, installation, and service from all aspects. Our specialists are already ready to coordinate with your side, to set-up the screen, to manage, etc, all the time; always there to ensure that your concerts will be running well and smoothly.
Big LED screen for concerts
There are various screen panel sizes and kinds to select from; to impress your audience, generally, the bigger the better. Our giant concert LED screen brings your events to a next level, for both indoor and outdoor application, such as live concerts, TV shows, music festivals, or any other sorts of events.

| Indoor Series | |||
|
Model number |
PH1.9 |
P3.1 |
P3.9 |
|
Pixel pitch |
1.95mm |
3.125mm |
3.91mm |
|
Module resolution |
128*128 |
96*192 |
64*128 |
|
Module size |
250*250mm |
250*500mm |
250*500mm |
|
Pixel intensity |
262144 |
102400 |
65536 |
|
Brightness |
1000 nit |
1000 nit |
1200 nit |
|
Refresh rate |
3840HZ |
3840HZ |
3840HZ |
|
View angle |
140 /140 |
||
|
LED configuration |
1515 SMD |
1515 SMD |
2020 SMD |
|
Scanning |
1/32 scan |
1/16 scan |
1/16 scan |
|
Max power |
800W/sqm |
800W/sqm |
800W/sqm |
|
Warranty |
3 Years quality warranty |
||
|
Grey Scale |
16384 level |
||
|
Working voltage |
110V-240v |
||
|
Life span |
>100000 hours |
||
|
Temperature Range |
-20℃ to +60℃ |
||
| Outdoor Series | |||
|
Model number |
PH2.6 |
P3.9 |
P4.8 |
|
Pixel pitch |
2.6mm |
3.91mm |
4.81mm |
|
Module resolution |
96*96 |
64*128 |
52*108 |
|
Module size |
250*250mm |
250*500mm |
250*500mm |
|
Pixel intensity |
14456 |
65536 |
43264 |
|
Brightness |
5000 nit |
5000 ~6000nit |
5000~6000 nit |
|
Refresh rate |
3840HZ |
3840HZ |
3840HZ |
|
View angle |
140 /140 |
||
|
LED configuration |
1515 SMD |
1921 SMD |
1921 SMD |
|
Scanning |
1/32 scan |
1/16 scan |
1/7 scan |
|
Max power |
800W/sqm |
800W/sqm |
800W/sqm |
|
Warranty |
3 Years quality warranty |
||
|
Grey Scale |
16384 level |
||
|
Working voltage |
110V-240v |
||
|
Life span |
>100000 hours |
||
|
Temperature Range |
-20℃ to +60℃ |
||

Now get started with us for your successful concerts!
