COB LED Display Screen

COB  series

indoor fine pixel pitch screen



Pixel Pitch:  P0.93/1.25/1.56/1.875mm

Panel Dimensions: 600*337.5mm

Panel depth: 33mm only

3840HZ refresh rate



Magnetic Full front access



---



Ultra High Contrast





Compared with SMD, the contrast is massivly improved, able to present you incredible visual impact, which is the best ever indoor solution

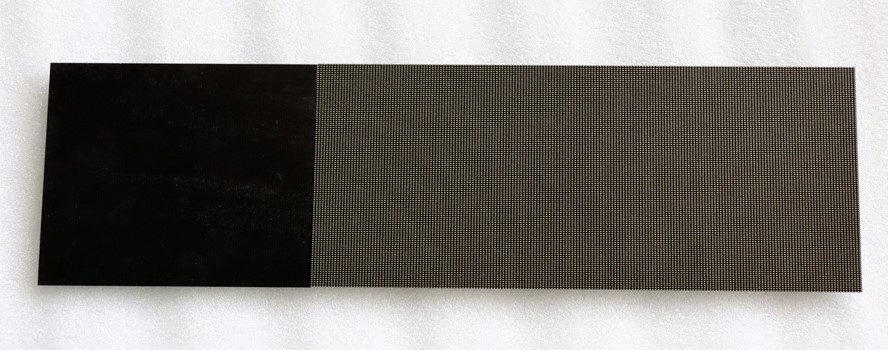

Super black Color





Standard module size 150*168.75mm.

By a simple glance, you will see how truly black the color is; it enhances the fantastic video performance, beyond your imagination.





---

Remarkable video quality

Ultra-high contrast,  wonderful color consistency, Wide viewing angle and color gamut, High gray scale and refresh rate



---



Crystal Clear Image, less viewable pixel dots





COB package achieves  better video optical performance through chip level packaging. The image quality is more comfortable and soft, and there is no significant sense of pixel particles. It is more suitable for closer viewing and longer viewing. The light is softer and not dazzling.

Waterproof, Dustproof, & Anti Collision





Due to the small spacing of conventional SMD small spacing display

screen, the display unit cannot be filled with glue, nor can the mask be

installed, and the LED is exposed on the outside, which can not really

achieve waterproof, dustproof and anti-collision, and even it is easy to

touch the lamp beads during handling.







---



Excellent Protection

COB technology provides significant advantages over traditional surface mount technology (SMT)

superb resistance against shock & humidity, astonishing contrast, etc., making it perfect choice for indoor advertising

---

Easy wall mounting Frame

With our well-designed frames, installation will become so easy, fast and simple; what's more, this frame allows minor adjustment, to ahieve a perfect seamless led video wall

---

  Multiple application



This product is widely applicable for various installation, for example, cinema lobby, airport, shopping mall, etc



---

PRODUCT SPECIFICATION

ITEM	P0.9	P1.2	P1.5	P1.8
Pixel Pitch	0.93mm	1.25mm	1.56mm	1.87mm
LED Lamp Bead Model	COB	COB	COB	COB
Module Size(W*H)	150×168.75mm	150×168.75mm	150×168.75mm	150×168.75mm
Module Resolution(W*H)	160×180	120×135	96×108	80×90
Cabinet Size(W*H*D)	600×337.5x38mm	600×337.5x38mm	600×337.5x38mm	600×337.5x38mm
Cabinet Resolution(W*H)	640×360	480×270	384×216	320×180
Cabinet Weight（kg/pcs)	6kg	6kg	6kg	6kg
Density of Pixel (dots/m2)	1137777 dots	640000 dots	409600 dots	284444 dots
Brightness(nit/m2)	500~800
Cabinet Material	Die-casting Aluminum
Maintenance Way	Front Access Maintenance
Viewing angle	160°/160°
Protection level	IP30
Gray scale	16bit
Driving method	1/64	1/45	1/54	1/45
Refresh rate	3840Hz
Operating platform	Windows XP /7/8/10
Signal Input	HDMI/DVI/Flash storage
Operating Voltage	AC：110V~240V、50~60Hz
Maximum Power（W/m2）	500
Average power（W/m2）	100-180
Continuous working time	7×24hrs
Service life	100,000Hours
Operating environment	-20℃～50℃ 10%～65%RH

Why should we choose COB LED Display screens?

There are several reasons why people choose COB LED displays. Here are some of them:

1. Better color reproduction than traditional SMD based LED screen

2. more energy efficient, less power consumption

3. Much wider viewing angle, 160/160 degrees

4. Sharpened imaging and premium visual experience for pictorial representation

5. Higher resolution due to direct encapsulation of LED chips to the PCB board ----- pixel pitch starts from 0.93mm

What's more, Anti-collision, this is to say, there is much less chance of damage during installation.

Contrast is also massively improved.

And the LED diodes are encapsulated indrectly onto PCB, durabiliby of screen is also highly increased, much longer life-span.
