Description
Technical Parameters
Key parameters:

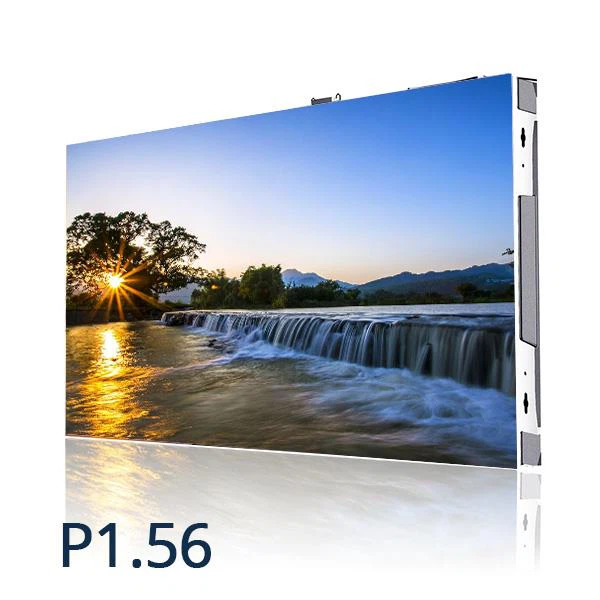

Pixel pitch: 1.56 mm
Pixel configuration: 1010 SMD
Brightness: 600-800 adjustable
Refresh rate: 3840 Hz

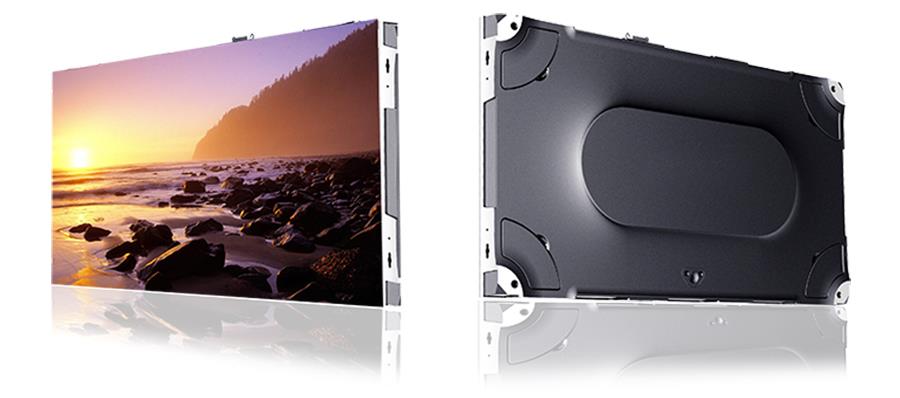

Panel dimension: 600×337.5×38 mm

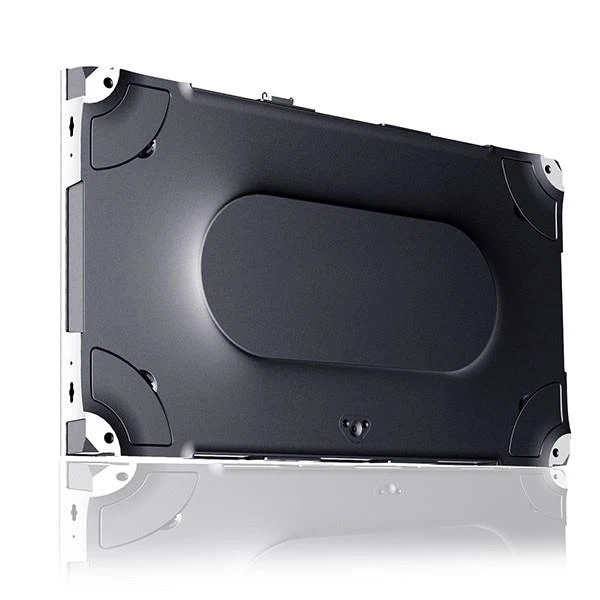

5kg panel weight & 38mm thickness
It is the lightest and thinest design for narrow pixel pitch displays.
Cable free connection
The power and signal are embedded into one smart connector, quick for set up and dismentle.
Low Cost of Splicing
Standard 16:9 panel can precisely achieve HD/FHD/UHD/SHV resolution,and with a 27" diagonal panel size it can become a perfect substitute for any existing 54" or 108" LCD screen.
P1.56 narrow pitch LED displays, is one of the best choice for indoor fixed installation; other pixel pitches available are, 1.25mm, 1.875mm, 2.3mm.
| Item | P1.25 | P1.56 | P1.87 | P2.3 |
| Pixel pitch(mm) | 1.25 | 1.56 | 1.87 | 2.3 |
| Pixel density(pixels/sqm) | 640000 | 409600 | 284444 | 182044 |
| Brightness(nits) | 600 | 600 | 600 | 600 |
| Scanning mode | Constant current drive | |||
| Working environment | Indoor | Indoor | Indoor | Indoor |
| Operating temperature | -30°C~60°C | -30°C~60°C | -30°C~60°C | -30°C~60°C |
| Viewing angle | H/V:160° | H/V:160° | H/V:160° | H/V:160° |
| Module size(mm) | 150 x 168.75 | 150 x 168.75 | 150 x 168.75 | 150 x 168.75 |
| Cabinet resolution(pixels) | 480 x 270 | 384 x 216 | 320 x 180 | 256 x 144 |
| Cabinet size(mm) | 600 x 337.5 | 600 x 337.5 | 600 x 337.5 | 600 x 337.5 |
| Cabinet Thickness(mm) | 38 | 38 | 38 | 38 |
| Waterproof level | IP34 | IP34 | IP34 | IP34 |
| Average power:(w/sqm) | 225 | 225 | 225 | 225 |
| Refresh rate:Hz | ≤3840 | ≤3840 | ≤3840 | ≤3840 |
| Net weight: kgs | 5 | 5 | 5 | 5 |
