Description
Technical Parameters
● Die casting cabinet, slim, strong and seamless assembling.
● High transparent rate, the highest can reach 71%.
● Slim cabinet, space saving; light weight, no need to change architectural structure，adapt to different installation place.
● Environmental Projection: no need air-con; Winds can go through the screen, low wind drag.
● Easy maintenance: fast replaced module, support front and rear service.
● Stacking, hanging and fixed installation are supported.
● The lamp & PCB are fully sealed by silicon, anti-dust and anti-collision, IP65, adapt to harsh weather

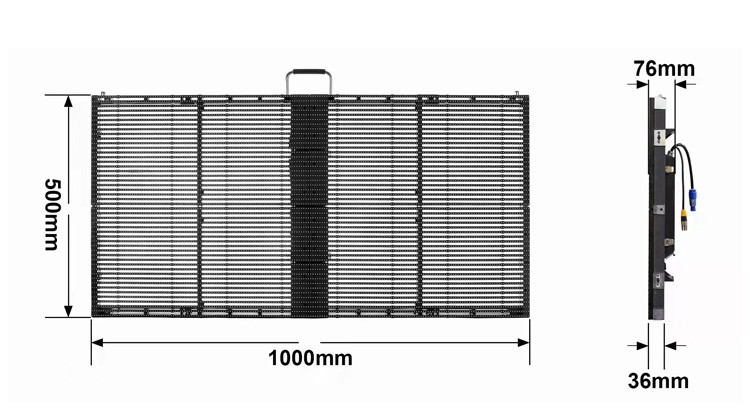

Standard panel size is 1000*500mm, with 76mm depth only.
Compared with traditional cabinet based LED displays, our transparent led displays is a much nicer choice for most applications, slimmer, ligther in weight.

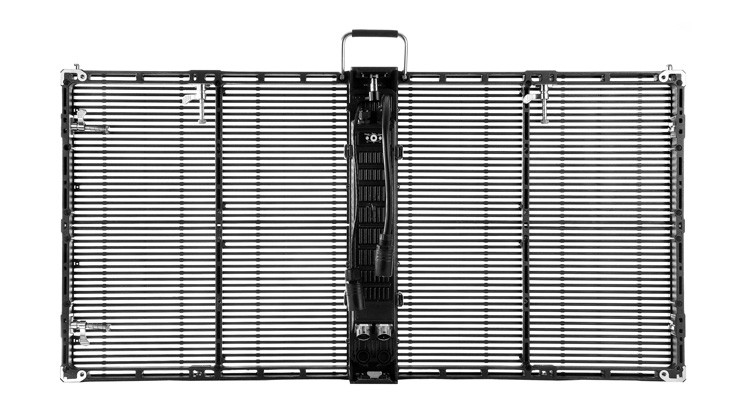

Rear View
Power box is made by die cast aluminum, robust, high precision, and also, excellent protecton against water.
Die cast aluminum is also light weight.
Outdoor IP65
Both front and rear side, is fully IP65, worrying free to use for 7 x 24 hour
Fast Installation
Fast-lock design, simple connection pad, only 10 seconds to finish single cabinet installation to realize highspeed whole screen mounting.
> High brightness, high contrast ratio and larger viewing angle to get excellent display effect from different directions.
> Full solid encapsulation of LEDs, IP65, to be more stable waterproof; dustproof and anti-collision.
> More than 55°/o transparency rate, seamless splicing with glass facade and window lighting structure.
> Less-space and lighter structure to be more easily flxed on different types of glass wall.
> Power consumption only 1/3 of the traditional led displays, no need for fan or air-conditioner for cooling, much better for energy-saving and environmental protection.
> Economic design structure, simple installation, both front/rear maintenance available to lower the operation and maintaining cost.
3840HZ refresh rate
Selecting refresh rate IC and high quality Led Chip, high-contrast, huge viewing angle, wide color gamut, anti-glowing, replay the remarkable visual performance.
Parameters
| Pixel pitch（mm） | 10.4/10.4mm outdoor | 3.91x7.8mm outdoor |
| Pixel Matrix Per SQM | 9216 | 32768 |
| Transparency | 58% | 53% |
| Brightness(nits) | 5500 | 5000 |
| Scan | 1/2 | 1/8 |
| Power Con.(Max/Avg) | 260W/sqm(Avg) 800W/sqm(Max) |
260W/sqm(Avg) 800W/sqm(Max) |
| Modules Dimension | 19.69’’ x 9.85’ 500mm x 250mm |
19.69’’ x 9.85’’ 500mm x 250mm |
| Modules Solution | 48 x 24 | 128 x 32 |
| Cabinets Dimension | 39.37’’ x 19.69’’ 1000mm x 500mm |
39.37’’ x 19.69’’ 1000mm x 500mm |
| Cabinet resolution | 96 x 48 | 256 x 64 |
| Cabinets Weight | 8kg / 17.64lbs | 8kg / 17.64lbs |
| Serivice Access | Rear | Rear |
| Refresh Rate(HZ) | 3840 | 3840 |
| Grey Scale(bit) | 14 | 14 |
| Viewing Angle(H/V) | 160°/160° | 160°/160° |
| IP Rate | IP65 | IP65 |
| Input Voltage(AC) | 110V / 240V, 50/60 Hz | 110V / 240V, 50/60 Hz |
| Operating Temperature | -20~50° | -20~50° |
| Lifespan(hrs) | >100,000(hrs) | >100,000(hrs) |
