Description
Technical Parameters

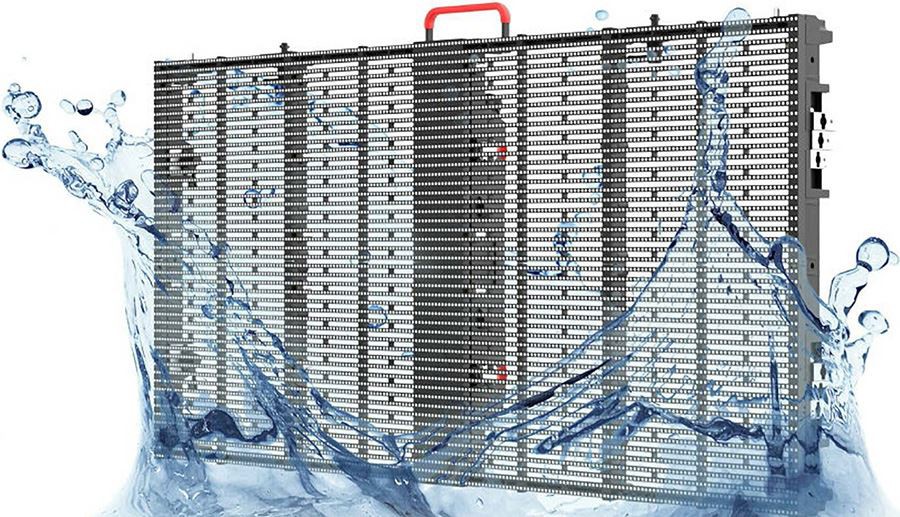

Outdoor IP65 / IP54, suitable for all kinds of weather.
With this product, needless to worry about the the rainny days; Matrix Displays has dedicated much energy and has done sufficient tests, to ensure the ingress protection level
55% transparency rate
Apart from the high video quality, and unlike the traditional cabinet based screen, our LED display allows people to enjoy the views from its rear side.
Light weight and slim
80mm thickness and 7.5kg panel weight
3840HZ refresh rate
Selecting refresh rate IC and high quality Led Chip, high-contrast, huge viewing angle, wide color gamut, anti-glowing, replay the remarkable visual performance.
Pixel pitch: 3.9mm, 5.2mm, 7.8mm, 10.4mm
Key parameters
| Parameters | |
| Pixel Pitch | 3.9mm x 7.8mm |
| Cabinet Size(mm) | 1000*500mm |
| Cabinet Resolution | 256*64pixels |
| Physical Density | 32768 pixels/m² |
| LED arrangement | SMD1921 |
| Driver mode | 1/8 scan Constant Current |
| Cabinet Weight (kg) | 7.5kg |
| Brightness | >5500nits |
| View Angle | 140ºH/140ºV |
| Refresh rate | 3840HZ |
| working volatage | 100-240VAC, 50 - 60 Hz |
| Max Power Consumption | 800W /m² |
| Average Power Consumption | 240W /m² |
| LED Life(Normal Tep) | 100,000Hrs |
| Application | Outdoor, IP65/IP54 |
| Installation Type | Fixed installation / rental mobile use |
