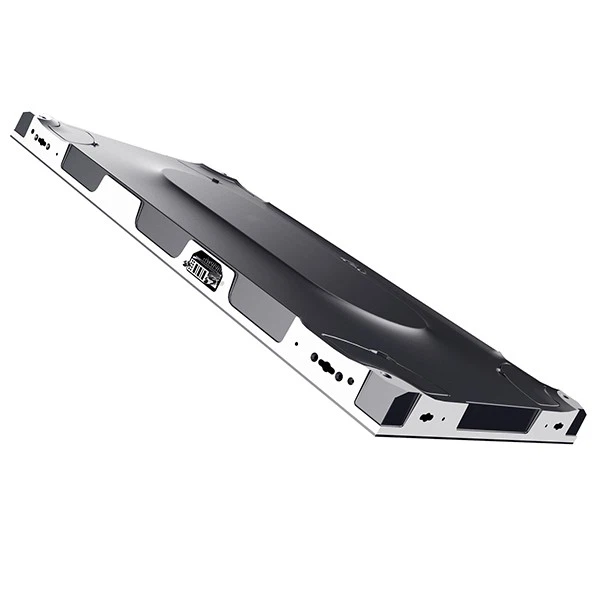

P1.875 Narrow Pixel Pitch LED Displays
Main features of Matrix Displays P1.875 are as follows:
1. SMD 3 in 1 technology widens the viewing angle greatly and makes the screen's surface even flatter.
2. Quality image
3. High contrast and high refresh rate
4. Good heat dissipation
5. Professional aviation packaging protects the control equipment extremely well
6. Light, ultra-thin display cabinet's total weight is only 5kg.
7.Standard cabinet size is 600mm*337.5mm.
Send Inquiry
Description
Technical Parameters
Narrow pixel pitch 1.875mm LED Displays, affordable cost, marvelous video quality!
Double power and signal back system avaialbe, ensure its smooth performance for years.
Each panel embededed with 2 data receiving cards and 2 power supplies, in case of failure, the backup one will start work immediately.
Front service and installation
All pixel pitches, including P1.875mm, are based front service & maintenance
Low brightness
High grey scale level
Specification of P1.875
Item | Value |
|---|---|
| Pixel Configuration | SMD LED |
| Pixel Pitch(inch) | 0.071 |
| Pixel Pitch(mm) | 1.875 |
| Pixel Density(pixels/㎡) | 284444 |
| Panel Size（inch） | 23.6 (W)×13.3 (H)×1.5(D) |
| Panel Size (mm) | 600 (W)×337.5 (H)×38(D) |
| Panel Material | Die - casting aluminum |
| Weight（kg/pcs） | 5 |
| White balance brightness(nits) | 600-800 adjustable |
| *Max. Power Consumption（W/㎡） | 450 |
| *Avg. Power Consumption（W/㎡） | 115 |
| Serviceability | Front/Rear |
| Viewing Angle（deg.） | 160(H)/160(V) |
| Refresh Rate（Hz） | 3840 |
| Gray Level（Bit） | 16 |
| Contrast Ratio | 8000:1 |
| Color Temperature（K） | 2000≤ TC≤ 10000 adjustable |
| Brightness Adjustment | Programmable/auto/manual |
| Color Calibration | Brightness and chroma calibration |
| Others | Communication - level power supply, hot double backup, temperature and humidity test, multi - signal input support, etc. |
