P20 DIP LED Displays

Why front service LED Displays? 1.Excellent visual effect, better viewing effect for text and graphic or video, suitable for long distance viewing 2.High brightness over 7000nit 3.High contrast ratio and good evenness, high uniformity, without mosaic 4.Resist of the high temperature and...

Chat Now

Product Details

Why front service LED Displays?

1.Excellent visual effect, better viewing effect for text and graphic or video, suitable for long distance viewing
2.High brightness over 7000nit
3.High contrast ratio and good evenness, high uniformity, without mosaic
4.Resist of the high temperature and antioxidation and anti-static
5.Long using life & MTBF
6.Easy to maintain in case of failure




Main Features

● Easy to replace the modules, receiving cards, and power supplies, all from front side.

What’s more, the learning cost is quite low, for a guy without any previous experience in maintenance, he/she could find the way in a few minutes.

● Ultra-high brightness

quality image against sunshine

● Ideal option for limited budget. The cost of P20 now is greatly reduced than before, affordable. P20 is recommended for display size over 20 square meters.




Cabinet size available: 960mm*960mm & 1280mm*960mm & 1280*1280mm. Powder coated iron and aluminum optional. Compared with Iron, Aluminum cabinets have advantages in weight and durability, mainly, it weighs about 35kg/m2, and anti-rust against high humidity.


Model

P20

Pixel Pitch

20 mm

LED Type

DIP346

Configuration

2R1G1B

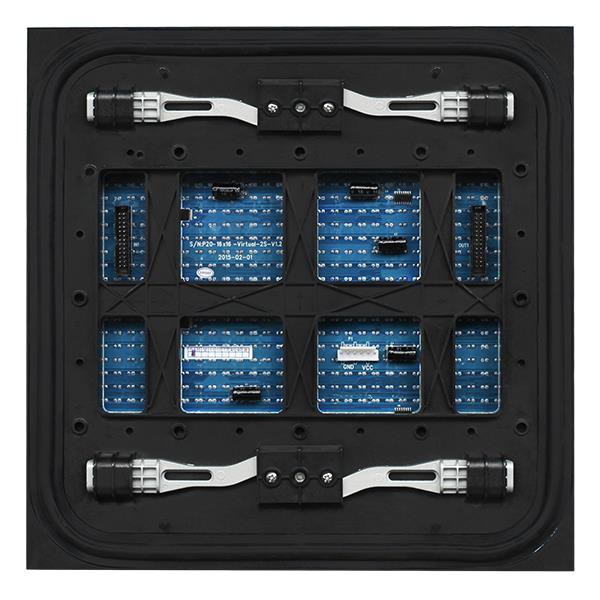

Module Size

320*320 mm

Pixel Density

2500 pixel/㎡

Refresh Rate

≥ 1920Hz

Gray Scale

16 Bit

Brightness

≥7000 nit

Scan Way

Static scan

Frame Rate

50HZ~60HZ

Viewing Angle

H:110°, V:55°

Cabinet Resolution

48*48Dots

Material

Iron

Cabinet Size

960*960mm130mm

Cabinet Weight

48Kg

IP Rating

Front IP65, Rear IP54

Control System

Nova/Linsn/Colorlight

Operation System

Windows/XP/8/10

Working-Temperature

-20℃~60℃

Working Humidity

10%~90% RH

Input Voltage

AC 110~220 V (±5%)

Blind spot rate

≤0.01%

MTBF

35000 Hour

Lifespan

100000 Hour

Certification

CCC,CE,RosH,ETL




Application:
MATRIXS DISPLAY front service display are widely used in Advertising media, super mall, school, Government, Trading conversation, Commodity fair, Exhibition, Cinema , Meeting room, Airport, Hotel, Station Hall and other Public Places.
