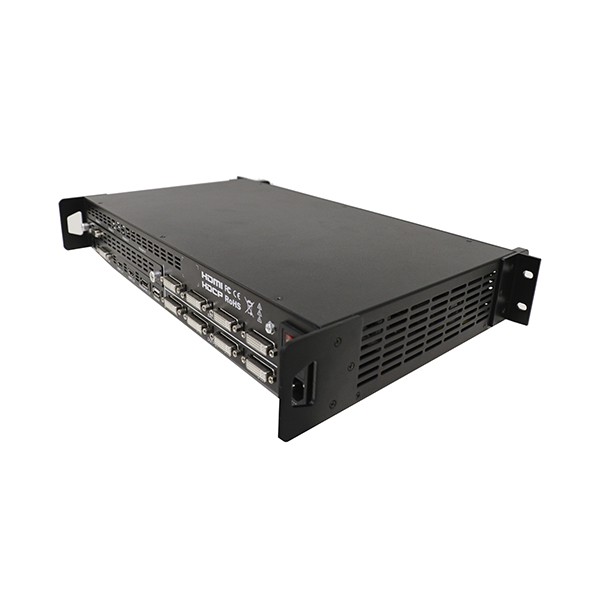

2K LED Video Processor

MXP1000 is a high performance video processor. It has 8 input interfaces including 1*DVI, 2*HDMI, 1*DP, 1*VGA, 1*Audio, and 2*USB/SDI(optional) and 5 output interfaces including 2*DVI,2*DVI backup,1*Audio. It also features in playing four images simultaneously, 2*SDI inputs (extended). Besides,...

Chat Now

Product Details




MXP1000 is a high performance video processor. It has 8 input interfaces including 1*DVI, 2*HDMI, 1*DP, 1*VGA, 1*Audio, and 2*USB/SDI(optional) and 5 output interfaces including 2*DVI,2*DVI backup,1*Audio. It also features in playing four images simultaneously, 2*SDI inputs (extended). Besides, it supports RGBCMY color calibration, and supports to rotate or turn the images over. On-load 4 million pixels makes VXP1000 display perfectly.




1,supports 4 million pixels with width up to 3,840 and height up to 1,600

2,Support four images to play an the same time, and enable 4K*2K inputs

3,Supports input via 2*SDI/2*USB(extend)

4,Support 4K*2K input via DVI/HDMI/DP/USB

5,Support RGBCMY color calibration

6,Enable to rotate pictures in 90°/180°/270° and turn them over horizontally or vertically

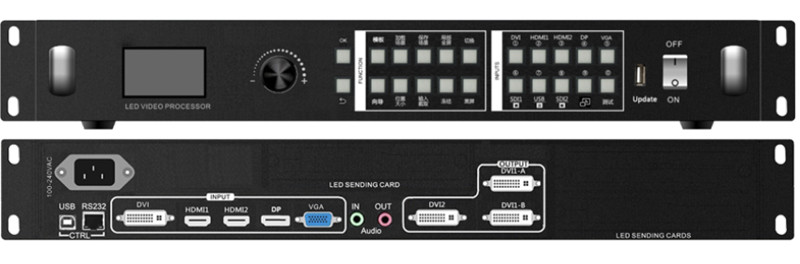

Front panel



①:Rotary knob:to press knob means ENTER or OK. Rotating knob represents selection or adjustment.

②:OK key:OK means ENTER or OK.

③:BACK key:pressing means getting back to upper menu.

④:Function:10 function key, template, load, save, part/full, switch, guide, size, input/crop, frozen, black.

⑤:Input interface:8 input interfaces, 1*DVI,2*HDMI,1*DP,1*VGA,2*USB/SDI(optional),1*audio.

⑥:USB update procedure

⑦:Power on/off

⑧:Control panel

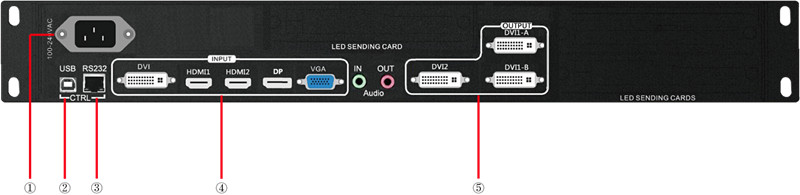

Rear Panel



①:Power interface

②:USB:host computer interface

③:RS232:host computer or center console interface

④:Input interfaces:1*DVI,2*HDMI,1*DP,1*VGA

⑤:Output interface:DVI 1-A,DVI1 -B,DVI2





Quantity1
Interface typeDVI-I socket
Signal standardDVI1.0,HDMI1.4 downward compatibility
ResolutionStandard VESA,PC to 3840x2160,SHD to 2160 p30



Quantity2
Interface typeHDMI-A
Signal standardHDMI1.3 downward compatibility
ResolutionStandard VESA,PC to 3840x2160,SHD to 2160p30



Quantity1
Interface typeDB15 socket
Signal standard

R、 G、 B、 Hsync、 Vsync:0 to1Vpp±3dB  (0.7V Video+0.3v Sync )

75 ohm  black level:300mV Sync-tip:0V

ResolutionStandard VESA,PC to 2560x1600



Quantity1
Interface typeDP
Signal standardDP1.2 downward compatibility
ResolutionStandard VESA,PC to 3840x2160,SHD to 2160p30



Quantity2
Interface typeBNC
Signal standardSD/HD/3G-SDI
Resolution

1080p 60/50/30/25/24/25(PsF)/24(PsF)720p 60/50/25/24 1080i 1035i

625/525 line




Quantity2
Interface typeUSB Type A
Signal standardUSB differential signal
Resolution720p/1080p /2160p



Quantity1
Interface type3.5mm audio output
Signal standardAnalog audio



Quantity1
Interface type3.5mmaudio output
Signal standardAnalog audio



Quantity3
Interface typeDVI-I socket, DB15 socket
Signal standardStandard DVI:DVI1.0
Resolution

800×600@60Hz

1024×768@60Hz

1280×720@60Hz

1280×1024@60Hz

1440×900@60Hz

1600×1200@60Hz

1680×1050@60Hz

1920×1080@60Hz

1920×1200@60Hz

1024×1920@60Hz

1536×1536@60Hz

2046×640@60Hz

2048×1152@60Hz




Input power100VAC – 240VAC 50/60Hz
Max power25W
Work temperature0°C~45°C
Storage humidity10%~90%
