P2.9 Indoor LED Displays

MS indoor LED Display Pitch 2.9,3.9, 4.8 Multi-Smart LED display for indoor rental use; specially designed modules, more robust, and NO AB modules. Multi-Smart Fully Modular design; for any unexpected failure part of LED display, could be replaced quickly, saving maintenance time considerably....

Chat Now

Product Details

MS indoor LED Display
Pitch 2.9,3.9, 4.8
Multi-Smart LED display for indoor rental use; specially designed modules, more robust, and NO AB modules.

Multi-Smart









Smart event solution

Pixel Pitch: 2.9mm, 3.9 mm, 4.8mm

Pixel Configuration: 3 in 1 full color black face SMD

Brightness: 800-1200 nits

Refresh Rate: 1920/2880/3840 Hz

Panel Dimension: 500×500×75 mm

Panel weight: 7.5kg







All unified modules

In the past, modules at left and right are different; this is to say, it was troublesome to prepare the spare modules.

Now with us, on the indoor LED display, all the modules are same, only one type, no trouble for spares.

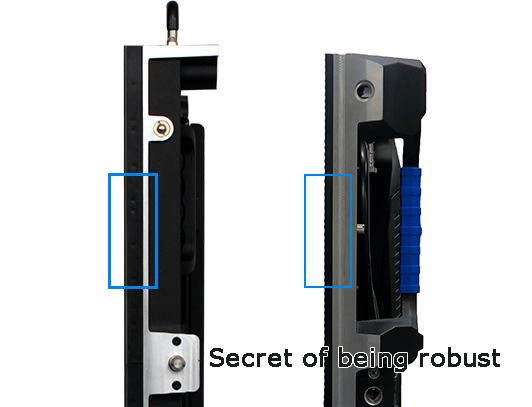

Improved edge protection

Module edge is considerably reduced, thus less edge exposed during installation, then less chance of being damaged during frequent transportation and installation.

The modules are especially designed







Wide viewing angle

With specially designed module protection mask, the display reaches ±140 degree viewing angle, no dark shadow when look at one side.

Optional refresh rate from 1920HZ to 3840HZ

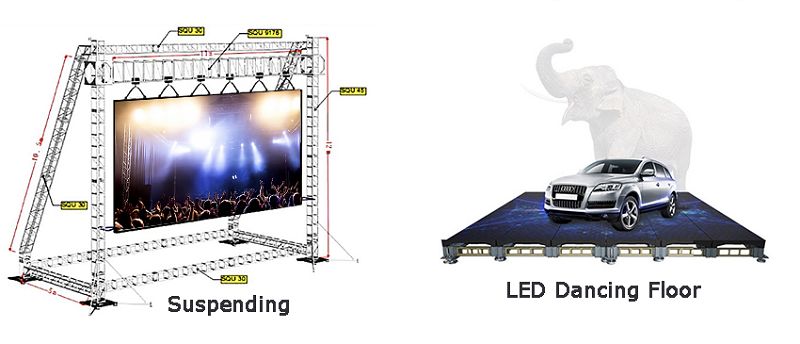

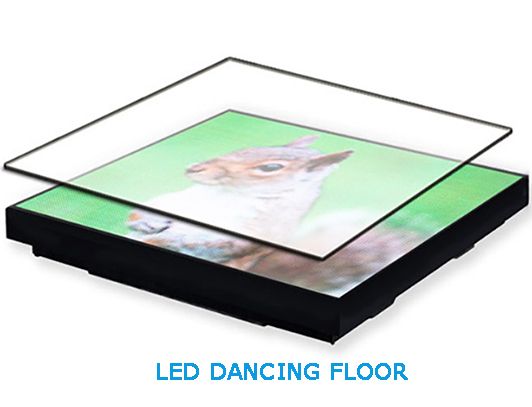

LED Dancing Floor application

Now with little extra cost, you can get a professional LED dancing floor.

It is so robust that totally ok to drive a car onto it.




Fully Modular design; for any unexpected failure part of LED display, could be replaced quickly, saving maintenance time considerably.

1.250mm*250mm module, front and rear service

2.Modular power box

3.Modular receiving card box

4.Whole panel are dual service designed, suitable for both permanent installation and rental jobs.






Parameter



Model

MSI-2

MSI-3

MSI-4

Pixel Pitch

2.975 mm

3.91 mm

4.81 mm

SMD type

SMD1515

SMD2020

SMD2020

Pixel

1R1G1B

1R1G1B

1R1G1B

Module Size

250*250 mm

250*250 mm

250*250 mm

Pixel Density

112896 pixel/㎡

65536 pixel/㎡

43264 pixel/㎡

Refresh Rate

≥ 1920Hz

≥ 1920Hz

≥ 1920Hz

Gray Scale

16 Bit

16 Bit

16 Bit

Brightness

≥ 800 cd/㎡

≥ 800 cd/㎡

≥ 1200 cd/㎡

Scan Way

1/24

1/16

1/16

Frame Rate

50HZ~60HZ

50HZ~60HZ

50HZ~60HZ

Viewing Angle

H:140°, V:140°

H:140°, V:140°

H:140°, V:140°

Cabinet Resolution

168*168 Dots

128*128Dots

104*104 Dots

Material

Die-cast Aluminum

Die-cast Aluminum

Die-cast Aluminum

Cabinet Size

500*500*75mm

500*500*75mm

500*500*75mm

Cabinet Weight

7.5Kg

7.5Kg

7.5Kg

IP Rating

Indoor use only

Indoor use only

Indoor use only

Control System

Nova/Linsn/COLORLIGHT

Nova/Linsn/COLORLIGHT

Nova/Linsn/COLORLIGHT

Working-Temperature

-20℃~60℃

-20℃~60℃

-20℃~60℃

Working Humidity

10%~90% RH

10%~90% RH

10%~90% RH

Input Voltage

AC 110~220 V (±5%)

AC 110~220 V (±5%)

AC 110~220 V (±5%)

Certification

CCC,CE,RosH,ETL

CCC,CE,RosH,ETL

CCC,CE,RosH,ETL
